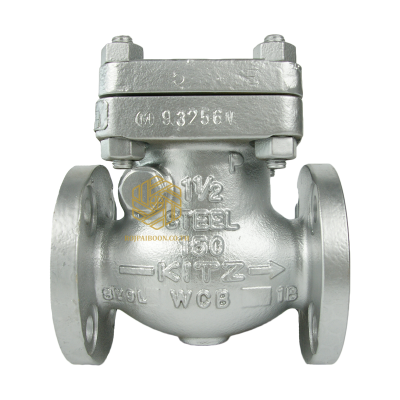

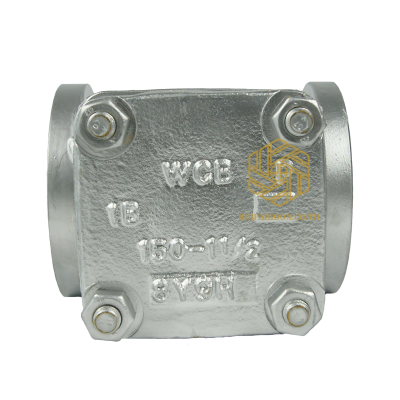

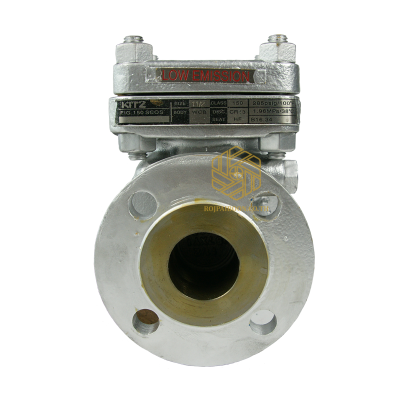

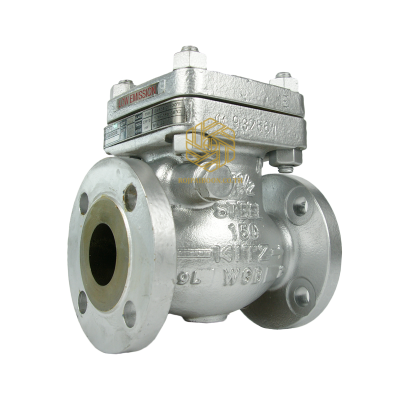

150SCOS/150SCOSY/150SCOSMM

CLASS 150 CAST STEEL SWING CHECK VALVE FLANGED ENDS,BOLTED COVER,END TO END:ASME B16.10 CLASS 150,END CONNECTION:ASME B16.5 CLASS 150,WALL THICKNESS:API 600 CLASS 150,TEST STANDARD:API 598

Categories : Valve Kitz , Carbon Steel Valves , SWING CHECK VALVE

Brands :KITZ

Product Specification

TYPE : CHECK VALVES
FIGURE : 150SCOS/150SCOSY/150SCOSMM
PRESSURE : CLASS 150
END CONNECTION : ASME B16.5
SIZE : 1 1/2 - 16
BODY/BONNET : A216 Gr. WCB
STEM : -
DISC : Carbon Steel+13Cr / Carbon Steel +HF / Carbon Steel + SS316
BODY SEAT : Carbon Steel + HF

*150SCOS Trim 5 P-T Rating : ASME B16.34
*150SCOSY Trim 8, Swing Type P-T Rating : ASME B16.34
*150SCOSMM NACE MR-0103 Swing Type P-T Rating : ASME B16.34
