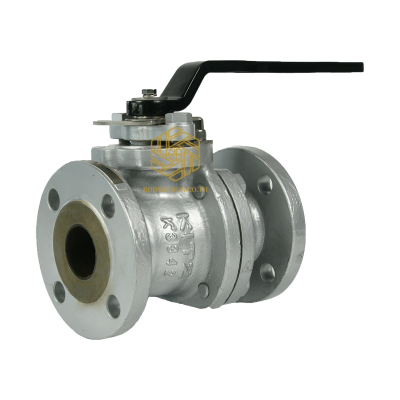

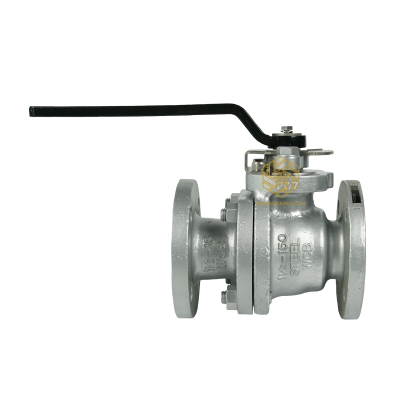

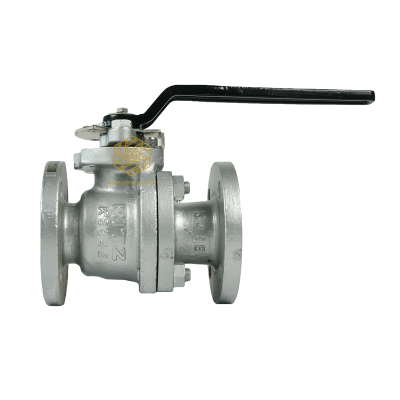

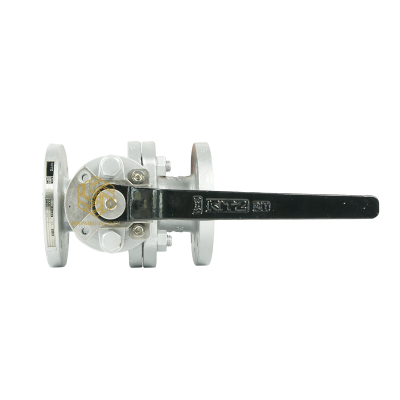

150SCTDZ/150SCTDZ-FS
CLASS 150 CAST STEEL BALL VALVE FLANGED ENDS,ANTI-STATIC DEVICE,FULL BORE, CONFORM TO ISO5211,END TO END:ASME B16.10 CLASS 150,END CONNECTION:ASME B16.5 CLASS 150,WALL THICKNESS:ASME B16.34 CLASS 150,TEST STANDARD:API 598
Product Specification
TYPE : BALL VALVES
FIGURE : 150SCTDZ/150SCTDZ-FS
PRESSURE : CLASS 150
END CONNECTION : ASME B16.5
SIZE : 1/2 - 8
BODY/BONNET : A216 Gr. WCB
STEM : TP304
BALL : TP304
BALL SEAT : Hypatite PTFE
*150SCTDZ P-T Rating : ASME B16.34
*150SCTDZ-FS Gear Operate P-T Rating : ASME B16.34
DOWNLOAD CAST CARBON STEEL BALL VALVE
