G-150UTDZ/G-150UTDZM/G-150UTDZM-FS

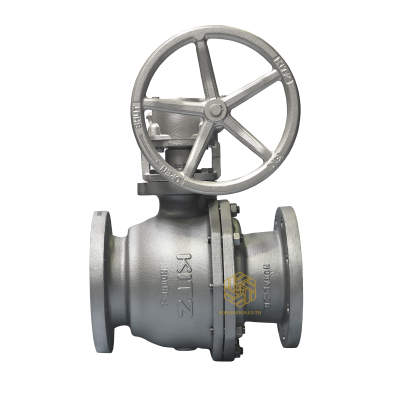

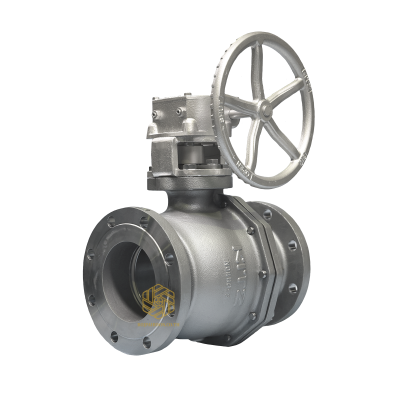

CLASS 150 CAST STAINLESS STEEL BALL VALVE FLANGED ENDS WITH GEAR OPERATED,ANTI-STATIC DEVICE,FULL BORE,CONFORM TO ISO5211.,END TO END:ASME B16.10 CLASS 150,END CONNECTION:ASME B16.5 CLASS 150,WALL THICKNESS:ASME B16.34 CLASS 150,TEST STANDARD:API 598
Product Specification
TYPE : BALL VALVES
FIGURE : G-150UTDZ/G-150UTDZM/G-150UTDZM-FS
PRESSURE : CLASS 150
END CONNECTION : ASME B16.5
SIZE : 6 - 10
BODY : CF8 / CF8M / CF8M
STEM : TP304 / TP316 / TP316
BALL : TP304,CF8 / TP316,CF8M / TP316,CF8M
BALL SEAT: Hypatite PTFE / Hypatite PTFE / Flexible Graphite
GLAND PACKING : PTFE
*G-150UTDZ/G-150UTDZM Full Bore, Split Body, Blowout-proof Stem Working Pressure (Room Temp.) 275 psi.
* G-150UTDZM-FS Full Bore, Split Body, Blowout-proof Stem, Fire Safe API 607 Working Pressure (Room Temp.) 275 psi.
DOWNLOAD G-150UTDZM-FS
