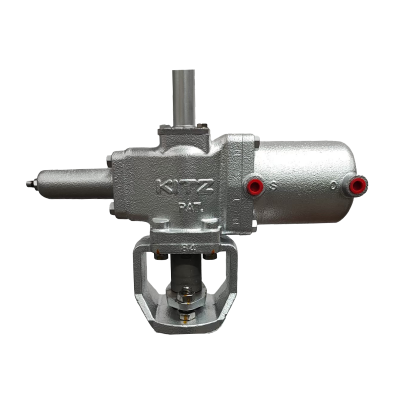

B

Categories : Valve Kitz , Actuator Actuated/Completed Set , PNEUMATIC ACTUATOR

Brands :KITZ

Product Specification

FIGURE : B

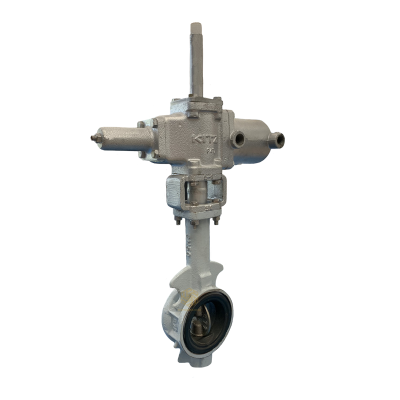

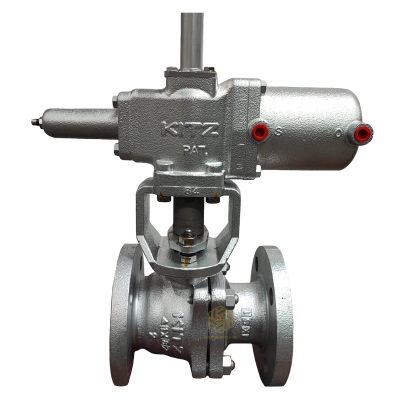

OPERATING TYPE : Double Action for Butterfly and Ball Valve
OPERATING MEDIA : Compressed instrument air
STANDARD OPERATING PRESSURE : 0.4 Mpa (60 psi) : Factory preset pressure
PRESSURE SUPPLY RANGE : 0.4 Mpa (60 psi) to 0.7 Mpa (100 psi)
STANDARD DURABILITY : 100,000 cycles under moderate service conditions
HOUSING TEST PRESSURE : 0.97 Mpa (9.9 kgf/cm2 or 140 psi)
DRIVE SHAFT ROTATION : 100°C (when the stopper is fully relaxed)
ROTATION ADJUSTMENT RANGE : 5°C at each end
SERVICE TEMPERATURE RANGE : -20°C to + 60°C (-4°F to 140°F)
OPTIONAL ACCESSORIES :

Limit Switch / Solenoid Valve
Air Filter-Regulator / Speed Controller
Quick Exhaust Valve / Valve Positioner
Silencer / Air Filter
Lubricator / Pressure Equalizing Valve
