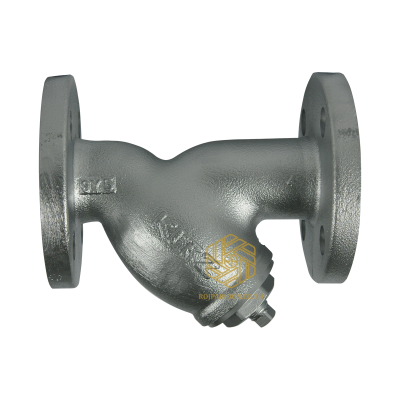

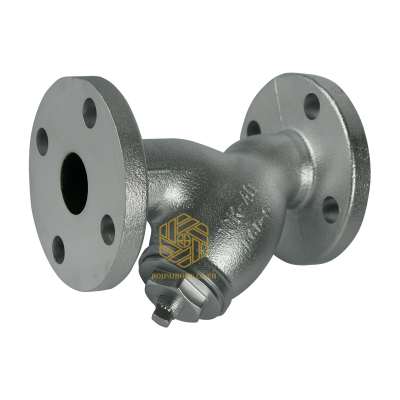

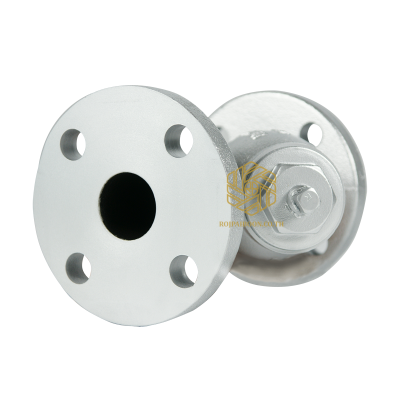

10FDYBF
10K DUCTILE IRON Y TYPE STRAINER FLANGED ENDS,SCREWED CAP, FLAT FACE FLANGED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B2239 10K,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
,・Static water -10℃～+120℃：1.4MPa・-10℃～+220℃の蒸気・空気・ガス・Oil, pulsing water：1.2MPa
/ ・Steam, air, gas, oil, pulsing water 300℃：1.0MPa
รายละเอียดสินค้า
TYPE : STRAINERS
FIGURE : 10FDYBF
PRESSURE : JIS 10K
END CONNECTION : JIS B2239
SIZE : 1/2 - 12
BODY : Ductile Iron
COVER/CAP : Ductile Iron
DISC/BALL : -
STEM/SCREEN : Stainless Steel
SEAT: -
1/2-1 1/2 Screwed Cap, 2-12 Bonnet Cap Gas Service
120ºC Static water 200 psi
220ºC Steam air, gas, oil 175 psi
300ºC Steam air, gas, oil 145 psi
DOWNLOAD 10K STRAINER FOR GAS SERVICE
