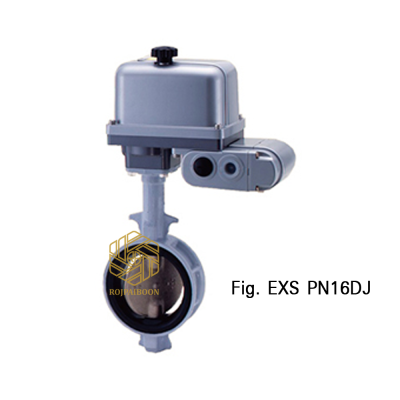

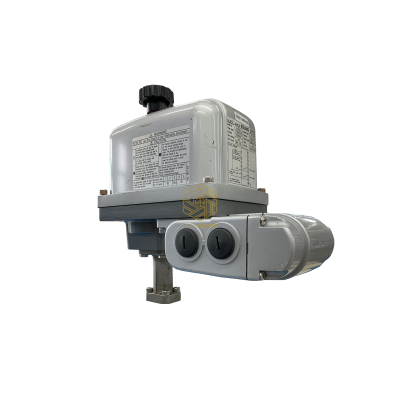

FIGURE : EXS
OPERATING TYPE : Standard Speed Type for Butterfly and Ball Valve
POWER SUPPLY : 100/200V AC ±10% 50/60Hz
ROTATING DIRECTION : Tuning clockwise to close and counterclockwise to open valves
POSITION LIMIT SWITCH : Two switches with voltage and two without voltage supplied
SWITCH CONTACT VOLTAGE : 250V AC 11A least resistance load
INSULATION CLASS : JIS Class E, Strength : 1500V AC 1 min. or 1800V 1 Sec., Resistance : 100 minimum at 500V DC
OVERLOAD PROTECTION : Thermal Protection
SERVICE ENVIRONMENT : Indoor / Outdoor (Submergence and direct sunlight must be avoided)
WATER, DUST PROOF : Equivalent to IP-67
AMBLENT TEMPERATURE : -10°C ~ +50°C
CONDUIT PORT : Two G1/2
MOUNTING POSITION : From Vertical position to Horizontal position (No downward position)
MANUAL OPERATION : Pull up the manual override handle knob for manual operation, which will activate the built-in interlock switch to cut off power supply.
For the restoration of electrical operation, push down the handle knob
POSITION INDICATOR : Position Indicator, covered by transparent cover, is equipped on the top of the actuator cover
MOUNTING FLANGE : In accordance with ISO5211
COMPATIBLE BALL VALVES :

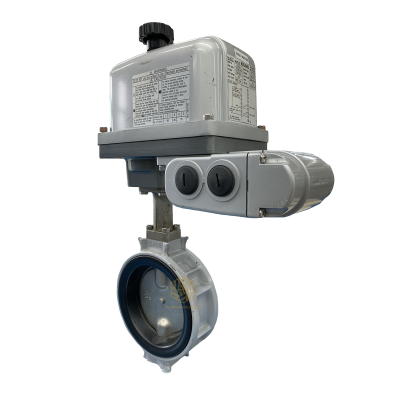

COMPATIBLE BUTTERFLY VALVES :
DOWNLOAD EXS-10DJ / EXS-10DJU / EXS-10DJUE
DOWNLOAD EXS-PN16DJ / EXS-PN16DJU / EXS-PN16DJUE
